Type : Power ‍

- Input : DC44V~57V/1A

- Output : POE30W/POE60W
‍

Type : Transfer
‍
- Transmission Media : Coaxial cable, twisted pair, telephone line, RVV line

- Transmission distance (2×0.75 square millimeter RVV line) : 500 M

- Maximum throughput : 45Mbps

- Multicast : Support IGMP multicast protocol

‍

Type : Connector

- Power input (DC_IN) : 2.1-5.5mm DC socket

- Power output (DC_OUT) : RJ45 (30W: 1,2,3,6; 60W: 1,2,3,6,4,5,7,8)

- Ethernet (data) : RJ45 (1,2 and 3,6)

- Twisted pair signal input and output (TP) : 5.08mm×2 Screw type industrial terminal

- Ground wire : Shell ground

‍

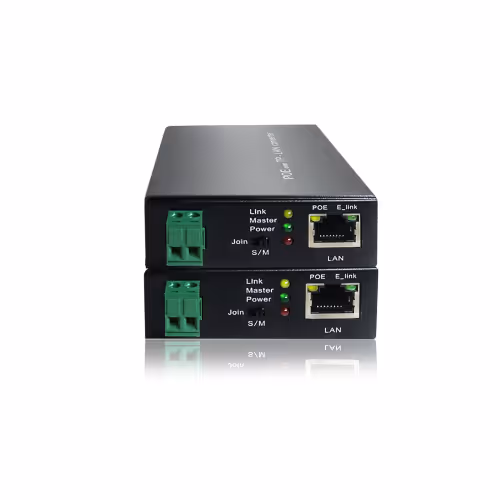

Type : Indicator Line

- Master : The indicator light of the host, it is on when the switch is turned to M, and it is off when the switch is turned to S (select the switch   position before powering on)

- Link : The signal connection light is on when the TP signal is connected, and not on when the TP signal is not connected.

- Power : The power indicator light is always on after power on.

- RJ45 Green : Network communication indicator light flashes when communicating.

- RJ45 Yellow : POE indicator, on when POE open, flashing when overload or undervoltage.

‍

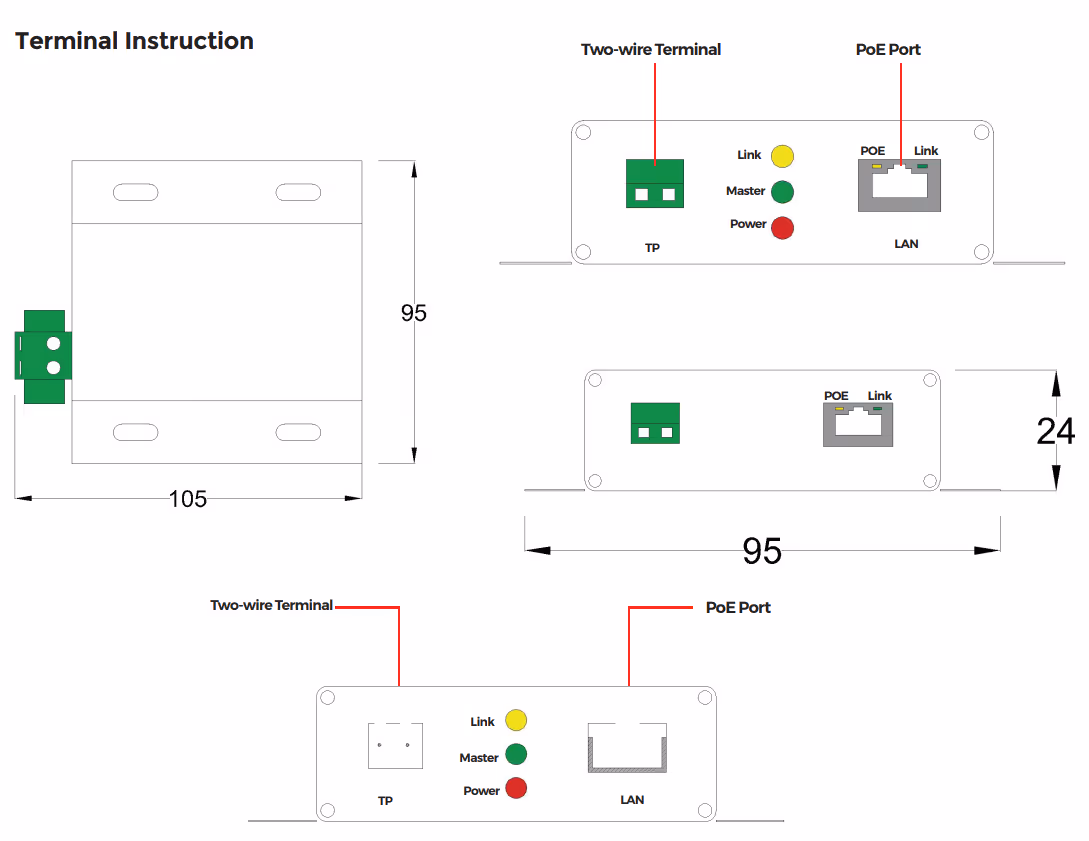

Type : Appearance

- Size : 105×95×24 mm

- Color : Black

- Net Weight : 190g
‍

Type : Environment Requirement

- Working Temperature : -20℃~70℃

- Humidity : 0-95%

- Storage humidity : -40℃~85℃

‍
